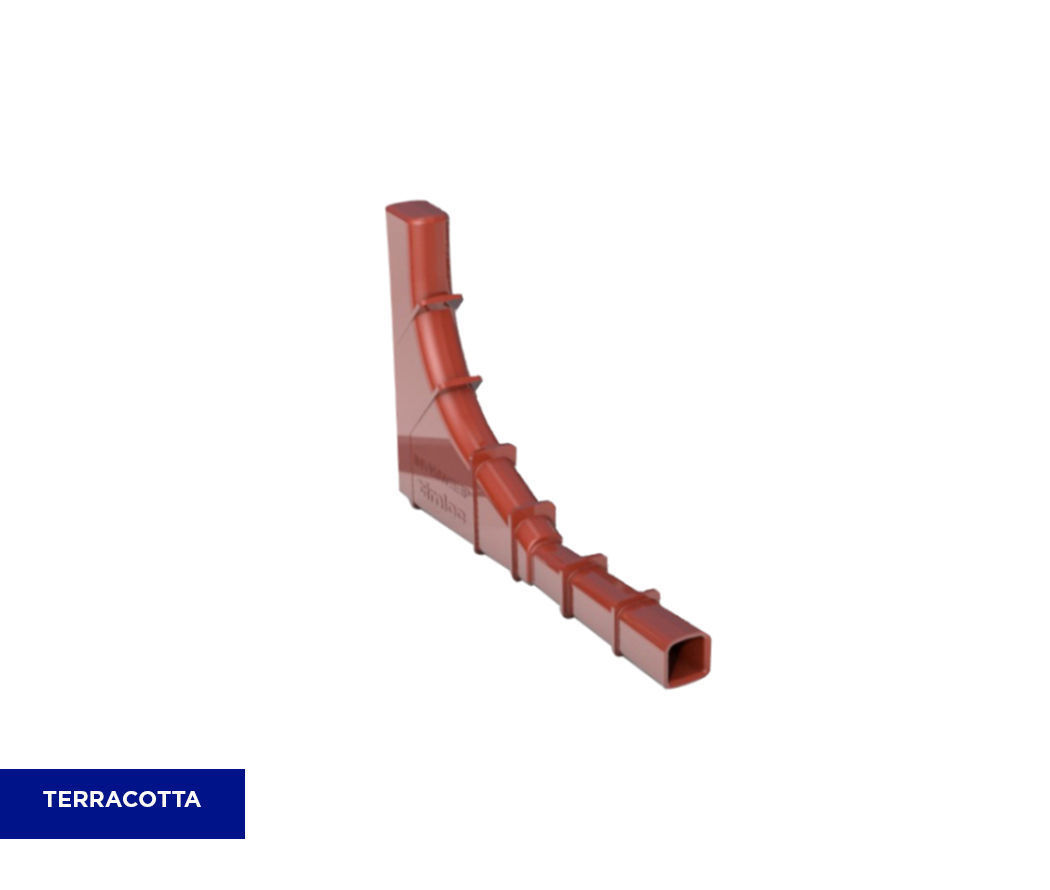

TIMLOC Peep Weep Hole Vent Terracotta IW50TE

TIMLOC Invisiweep Peep Weep Hole Wall Vent Terracotta IW50TE

Features of TIMLOC Invisiweep Peep Weep Hole Wall Terracotta IW50TE:

• Size (mm) 65 x 10 x 102
• Integral 4mm vermin barrier and rainwater baffle as recommended by BS5250, to reduce ingress of large nest building insects, mammals and rainwater penetration to the cavity
• Externals ribs & tapered profile, to key into mortar for secured fixing
• Full height upstand to cavity side, to maintain drainage and minimise the impact on blockage from cavity cement builds
• Discrete water outlet, to minimise the impact and reduce visibility for a truly concealed wall weep
• Venturi effect outlet tube to reduce pressure, allowing for optimal water drainage
• Extension tube available for wide walls and render
• Product is Terracotta, not as shown
• Suited for use with the Timloc cavity tray system, over external lintels and on external masonry walls.
• Invisiweep has numerous patent-pending innovative features, including a venturi effect outlet tube that reduces water pressure, allowing for optimal drainage.
• Invisiweep satisfies all NHBC requirements and meets British standards: BS5250, BS5628 and BS8215.
• The 500mm Invisiweep extension provides the ideal solution for render and wide walls and can be easily cut to size on site.
